NEX-100
Concentric, bipolar microelectrode with NE Rhodes-Style Tip featuring a cylindrical stepped tip to allow for carefully controlled contact surface areas.
The NEX-100 features the same tip as our NE-100 probe, but in a form factor appropriate for chronic implantation.

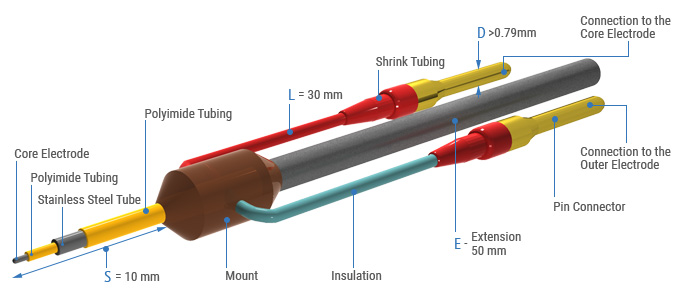

The NEX-100 is designed to replicate the Peter Rhodes-produced NEX-100 concentric, and features the same length, thickness, and tip dimensions. The NEX-100 features the same tip as the NE-100 probe, but in a form factor appropriate for chronic implantation. The NEX-100 has a much shorter length and includes a rigid removable extension rod that can be easily gripped and then clipped off after the headcap is hardened to create a low-profile implant.
As in the NE-100, many features are fully customizable by special order, including shaft length, flexible wire lengths, connector types, extension rod length, and other features.
Β

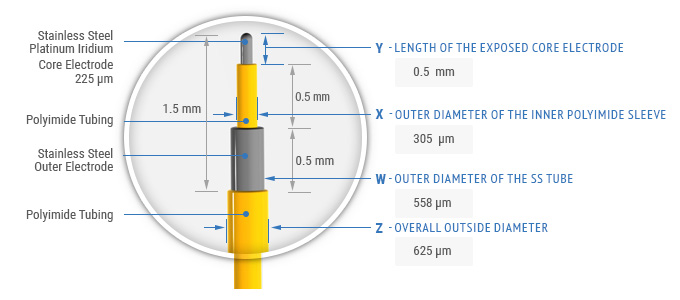

Stainless Steel Concentric Bipolar Electrode with cleavable Extension
|
Item |
S (mm) |
W (Β΅m) |
X (Β΅m) |
Y (Β΅m) |
Tip Diameter (Β΅m) |
E (mm) |
5/Pkg |
|
SS-NEX-100 |
10 |
625 |
305 |
500 |
225 |
50 |
Β
Β
Platinum/Iridium Concentric Bipolar Electrode with cleavable Extension
|
Item |
S (mm) |
W (Β΅m) |
X (Β΅m) |
Y (Β΅m) |
Tip Diameter (Β΅m) |
E (mm) |
5/Pkg |
|
PI-NEX-100 |
80 |
625 |
305 |
500 |
225 |
50 |
Β
Β
