4302
5V signal offsetter (CED)
Description
Β

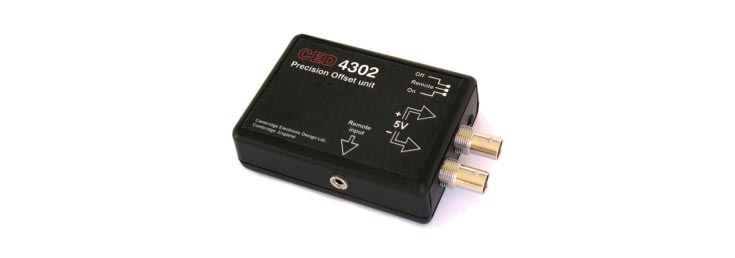

The CED 4302 is a single channel signal offsetter. It adds or subtracts an accurate 5V offset to an analogue input up to Β±50 V. It is designed for recording unipolar (0 V to 10 V or -10v to 0 V) signals using a Β±5 V recording system, or for driving equipment that has a unipolar input from bipolar (Β±5 V) output devices. The unit is battery-operated, with an estimated battery life of over 1000 h. When switched off, the inputs and outputs are connected together to provide zero offset.
Case size: 70 mm Γ 50 mm Γ 35 mm (W Γ D Γ H)
