Electrode Holders for
Glasselectrodes |
|
|
|
|
|
Our company
offers microelectrode holders for different headstades/amplifiers.
The HE-types are designed to
fit older Dagan-, Warner- or WPI- amplifiers and have a 2mm pin or a 2mm jack to connect
the headstage.
These electrode
holders are available with a replaceable ag wire (must be chlorided before use) or a 2mm x 2mm Ag-AgCl Pellet.
Pipette Seals are also replaceable and adjustable.
These holders are available
without or with 2mm suction port , straight, 90° or 45°

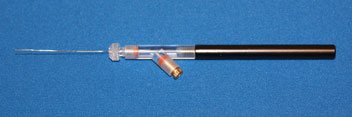

(second suction port upon request). You can get 90° and
45° holders
with handle.
The
HB- types fit
headstages with BNC-connector.
They are straight and are equipped without or with 2mm
suction port. You can choose between a replaceable ag
wire (must be chlorided before use) or a a 2mm x 2mm Ag-AgCl
Pellet. Pipette seals are also replaceable and adjustable.
The
HU-types are made for
Axon U-headstages.
The
HL1- and HL2-types
are for older Axon – headstages.
All
electrode holders are made of polycarbonate ( HB-types
of Teflon upon request). The holders can fit glass with
O.D.(mm) wether 1.0; 1.2; 1.5 or 2.0 (x.x
please specify when ordering).
|
|
|
|
|
Part
numbers/Ordering information |
|
|
|
type
|
wire/pellet
- |
with/without
port - |
O.D.glass
- |
pin/jack |
straight/angle |
-
handle |
| HE
= pin/jack |
W
= wire
|
P
= with port |
x.x
(mm)
|
M
= 2mm pin |
45
= 45° angle |
H |
| HB
= BNC |
P
= pellet
|
O
= without port |
|
F
= 2mm jack |
90
= 90° angle |
|
| HU
= HLU |
|
PP
= additional port |
|
|
without
sign = straight |
| HL1
= HL-1 |
|
V
= Vent |
|
|
|
|
| HL2
= HL-2 |
|
|
|
|
|
|
|
|
|
| Examples: |
HEW
- P1.5 - M90
= |
E-type
electrode holder,
ag-wire,
with port, for 1.5 mm glass, 2mm pin
connector, 90° angle |
|
HEP
- O1.2 - F
= |
E-type
electrode holder, ag-agcl pellet,
without port, for 1.2 mm glass, 2 mm jack
connector, straight |
|
HBW
- P1.0 = |
BNC-type
electrode holder,
ag-wire,
with port, for 1.0 mm glass
|
|
|
|
HE-
type electrode holders
|
|
 |
HEW-P-x.x-M
E-type electrode holder,
ag-wire, with port, for x.x mm glass, 2 mm pin
connector, straight |
|
 |
HEW-P-x.x-F
E-type electrode holder,
ag-wire, with port, for x.x mm glass, 2 mm jack
connector, straight |
|
|
|
|
|
 |
HEW-O-x.x-M
E-type electrode holder,
ag-wire, without port, for x.x mm glass, 2 mm pin
connector, straight |
|
 |
HEW-O-x.x-F
E-type electrode holder,
ag-wire, without port, for x.x mm glass, 2 mm jack
connector, straight |
|
|
|
|
|
 |
HEP-P-x.x-M
E-type electrode holder,
ag-agcl pellet, with port, for x.x mm glass, 2 mm pin
connector, straight |
|
 |
HEP-P-x.x-F
E-type electrode holder,
ag-agcl pellet, with port, for x.x mm glass, 2 mm
jack connector, straight |
|
|
|
|
|
 |
HEP-O-x.x-M
E-type electrode holder,
ag-agcl pellet, without port, for x.x mm glass, 2 mm pin
connector, straight |
|
 |
HEP-O-x.x-F
E-type electrode holder,
ag-agcl pellet, without port, for x.x mm glass, 2 mm
jack connector, straight |
|
|
|
|
|
 |
HEW-P-x.x-M90
E-type electrode holder,
ag-wire, with port, for x.x mm glass, 2 mm pin
connector,
90° angle |
|
 |
HEW-P-x.x-F90
E-type electrode holder,
ag-wire, with port, for x.x mm glass, 2 mm
jack connector, 90°
angle |
|
|
|
|
|
 |
HEW-O-x.x-M90
E-type electrode holder,
ag-wire, without port, for x.x mm glass, 2 mm pin
connector,
90° angle |
|
 |
HEW-O-x.x-F90
E-type electrode holder,
ag-wire, without port, for x.x mm glass, 2 mm
jack connector, 90°
angle |
|
|
|
|
|
 |
HEP-P-x.x-M90
E-type electrode holder,
ag-agcl pellet, with port, for x.x mm glass, 2 mm pin
connector,
90° angle |
|
 |
HEP-P-x.x-F90
E-type electrode holder,
ag-agcl pellet, with port, for x.x mm glass, 2 mm
jack connector, 90°
angle |
|
|
|
|
|
 |
HEP-O-x.x-M90
E-type electrode holder,
ag-agcl pellet, without port, for x.x mm glass, 2 mm pin
connector,
90° angle |
|
 |
HEP-O-x.x-F90
E-type electrode holder,
ag-agcl pellet, without port, for x.x mm glass, 2 mm
jack connector, 90°
angle |
|
|
|
|
|
|
|
|
|
 |
HEP-O-x.x-M45
E-type electrode holder,
ag-agcl pellet, without port, for x.x mm glass, 2 mm pin
connector,
45° angle |
|
|
|
|
|
|
|
All electrode holders with
45°
angle are also available with handle.
For example: |
|
HEW-O-x.x-F45-H
E-type electrode holder,
ag-wire, without port, for x.x mm glass, 2 mm
jack connector, 45° angle,
handle |
|
|
|
|
|
|
|
HB-
type
electrode holders
|
|
 |
|
HBW-P-x.x
BNC-type electrode holder, ag-wire, with
port, for x.x mm glass |
|
|
|
|
|
|
HBW-O-x.x
BNC-type electrode holder, ag-wire, without
port, for x.x mm glass |
|
|
|
|
|
|
HBP-O-x.x
BNC-type electrode holder, ag-agcl
pellet, without port, for x.x mm glass |
|
|
|
|
 |
|
HBW-PP-x.x
BNC-type electrode holder,
ag-wire, with port, for x.x mm glass
with additional port |
|
|
|
|
|
|
|
BNC-type
electrode holders are also available fromTeflon.
For example: |
 |
HBW-P-x.xT
BNC-type electrode holder, ag-wire, with port, for x.x mm glass,Teflon |
|
|
|
|
|
HU-
,
HL1- and
HL2- type
electrode holders |
|
|
|
 |
|
HUW-P-x.x
U-type electrode holder, ag-wire, with
port, for x.x mm glass |
|
|
|
 |
|
HL2W-P-x.x
L2-type electrode holder, ag-wire, with
port, for x.x mm glass |
|
|
|
 |
|
HL1W-P-x.x
L1-type electrode holder, ag-wire, with
port, for x.x mm glass |
|
|
|
|
