Heat Wave   HW-30 & HW-230

Temperature Controllers

Dagan

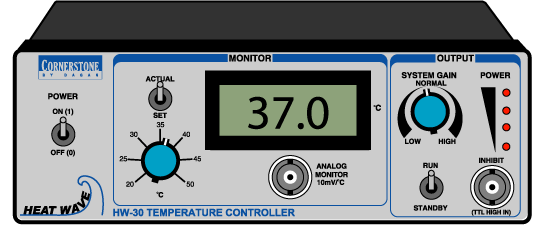

HW-30 single channel temperature controller



 Features

  The Heat Wave (HW-30) is an ideal microscope heating
    temperature controller
  Low Noise: Internal DC Power supply outputs only heavily filtered
    DC to Heating Stage
  High Power: (30 watts) Fast temperature steps. Able to maintain
    temperature during fast perfusion
  Accurate Temperature Control: 20 to 50 C with stability of
    0.2C or better
  Exact fit to microscopes: Adapter plates mate Heating Stage to
    almost any microscope
  Pre-Heats Perfusion solutions: Unique Dove Tail Groove in Heating
    Stage allows perfusion lines to run through heating stage before
    entering bath chamber
  Two Heating Stages: For use with 35mm culture dishes or with
    Dagan Recording Chambers
  System Gain Control: Allows user interface to adjust system gain
    to the application


HW-30

HW-30 with HW-101 Heating Stage

HW-230
                   HW-230 dual channel temperature controller

HW-30

HEAT WAVE 30 Watt Heater Controller

HW-230

 Two channel Heater Controller (30 watts per channel)

HW-B

Optional Battery input jacks (allows HW-30 to be run from 12V Battery)

HW-101

Heating Stage for use with 35mm Culture Dish

HW-104

Heating Stage for use with Dagan Recording chambers

ADPT

Adapter Plate to mount heater stages to microscope (Indicate microscope model)

TH-30

Spare Thermister for HW-30
