MTC-1

Micro Temperature Controller

physitemp

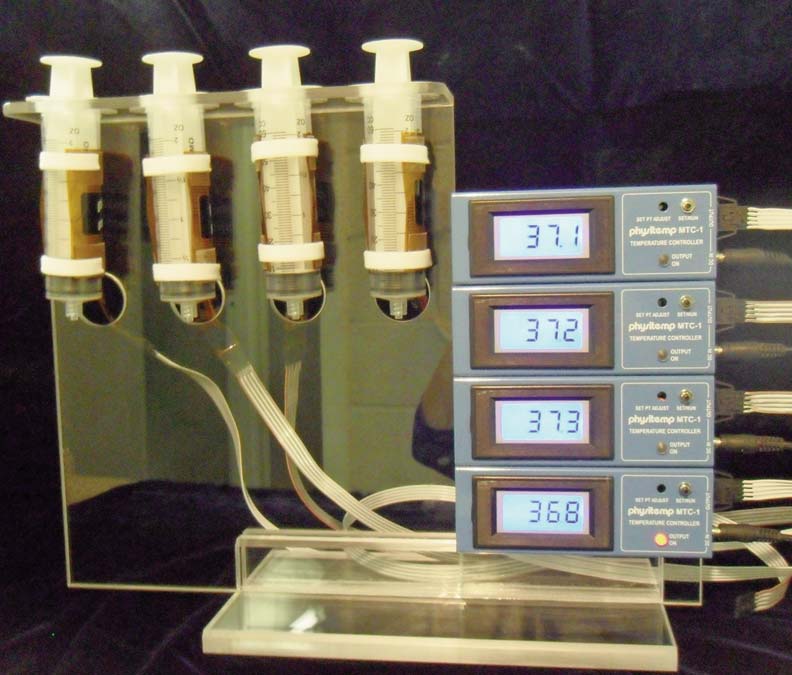

Four MTC-1 Micro Temperature Controllers set-up with perfusion syringes



MTC-1 Micro Temperature Controller
  • Control Range of ambient to 99.9C
  • 110 to 230V AC line operation
  • Resolution 0.1C







Recent interest in a simple low cost temperature controller to maintainsmall and medium sized objects atphysiological temperatures was there a soning behind the development of the Physitemp MTC-1 microtempera-ture controller.  Utilizing a precisionhighly stable platinum RTD as thefeedback sensor, this inexpensive controller will display and maintain a set temperature within + or - 0.1degrees Centigrade.  The controller is designed to operate from a 12V DCsupply and can control an output current up to 4 Amperes (50 Watts).  It can also be used with an input voltage between 6 and 24V DC for both lower and higher power applications (up to 90 Watts).  A 1/2 inch backlit LCD readout provides continuous display of temperature with 0.1 degree resolution.  The set point is easily adjusted from just above room temperature up to 99.9 degrees C via a 20 turn potentiometer.  A momentary switch allows the user to toggle the display between the set and run temperatures. The controller is ideal for maintaining the temperature of 60cc perfusion syringes and small heated surfaces. Its compact size (5 1/2 long x 2wide x 1 deep) makes it ideal where space is at a premium.


                                Controller Specifications

Accuracy 1C
Resolution 1C
Range Ambient to 99.9C
Readout 0.5 Backlit LCD
Max. DC Power Output 90 W
Output Rating min 6V max 24V DC, 4 A
AC ground leakage current less than 1 mA  at 110 V AC
Dimensions 14 cm long x  5 cm wide x 2,5cm deep
Weight 0.453 kg (1lb) including power supply
Power Supply 110V  - 230 V AC input, 12V DC output at 4 A
