6400 Advanced |
|
|
Micro-Iontophoresis
Current Generator
High
Voltage - Six Channel |
Dagan |
|
|
|
|

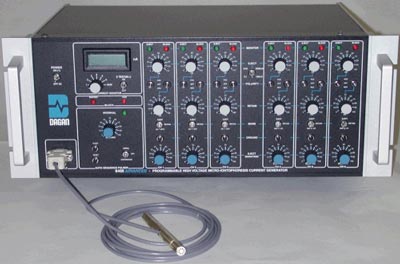

The Dagan 6400Advanced
is a system, which consists of six fully programmable
High Voltage constant current generators for use with
single or multi barrel microelectrodes. Without the
need of any batteries, precise iontophoretic drug
ejection is accomplished by passing controlled
constant currents through the drug carrying
electrodes.
Features
High
Compliance Voltage (+135Volts)
Electrode Resistance Test
Programmable Timer
7th
Sum Channel
+1000nA
range
Electrode
Blocking indicators |
|
|
|
|
|
Current
Monitoring
The
6400Advanced measures the ACTUAL current
passing through the electrode barrel (rather than the
expected current), and displays the current in nA's on
the digital read out monitor. The output current can
also be monitor via a back panel BNC. Each channel
also has a monitor LED that alerts the operator of
electrode "BLOCKING" (microelectrode failure
to pass current).
|
Time
Programming
The
6400Advanced includes the versatile AUTO SEQUENCE
PULSER which switches any or all channels into the eject
mode sequentially for the duration of its independently
preset drug ejection time with a common interval time
between channels. Each channel can also be independently
operated via the front panel controls or an external
digital control. Combinations of these are also
possible.
|
|
Specifications
|
|
|
Current
Source Parameters
|
Compliance
voltage |
270
V peak to peak |
|
Current
Range |
Eject |
Two
Ranges; +/-100nA & +/-1000nA |
|
Retain |
+/-
100nA |
|
Maximum
Electrode Resistance |
|
Output
Current |
100nA |
1.35
Gig Ohm |
|
1000nA |
135
Meg Ohm |
Meter
|
Current
Mode |
Displays
the Actual Measured Current of the selected
Channel. +/-1000 nA range. |
|
Z
Test Mode |
Displays
the Actual Measured Electrode Resistance of the
selected Channel. 1999 Meg Ohms range. |
|
Sum
Channel |
7th
Channel, supplying a current equal in magnitude
but opposite in sign to the sum of the currents
in the six channels (1000nA range). |
|
Current
Programming
|
Front Panel |
Eject |
Selectable Positive or
Negative 100nA/1000nA one-turn control. Scaled
by Range switch. |
|
Retain |
Selectable Positive or
Negative 100nA one-turn control. |
|
External |
100 nA/Volt, rear panel
inputs. Maximum input 10 volts (1000nA Command). |
Dimensions
|
Cabinet |
7.0"
high, 19.0" wide, 10.0" deep.
(17.7x48.3x25 mm) |
|
Probe |
Pencil
Probe; 0.5" Diameter, 4" Long , Ten
Foot Cable |
|
Power
Requirements |
100
to 115 or 200 to 230 VAC (selectable with
internal switch), 50 or 60 Hz, 20 W. |
|
|
|
|
|
